| Model: |
HIDA28 |
| Categories: |
Precision Angle Encoder |
| Description: |
|
|
| Compact, High-precision,
Solid shaft, Clamping flange,
Outer diamter 28 mm. |
|
|
|
| |
|

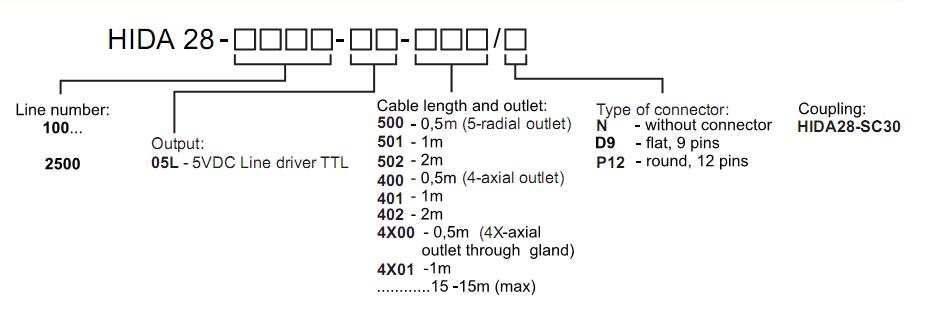

Electrical data
|
Code disc lines |
60, 100, 200, 250, 360, 500, 1000,
1024, 1500, 2000, 2500 Lines |
| Pulse rate (square wave) |
K = 1, 2, 3, 4, 5, 8, 10 |
|
Voltage supply |
DC +5V +/- 5% |
|
Accuracy |
+/- 0.1T arc.sec |
|
Output signal |
Square wave |
|
Output frequency |
160 KHz |
Mechanical data
|
Housing diameter |
28 mm |
|
Shaft diameter |
5 mm |
|
Max. rotational speed |
6000 rpm |
|
Shaft load |
5 N axial
10 N radial |
|
Protection |
IP67 (axial outlet of cable through gland; radial outlet of cable) |
|
Material |
Bearing: Stainless steel
Housing: Cast aluminum |
|
Weight |
45 g (Without cable) |
Environmental data
|
Operating temperature |
-10°C…70°C |
|
Storage temperature |
-30°C…80°C |
|
Humidity |
98% RH |
|
Shock |
Max. 300 m/s2,11 ms |
|
Vibration |
Max. 100 m/s2,55…2000 Hz |
|
